Product Description

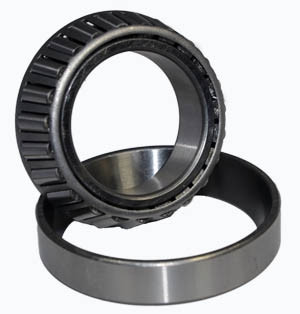

Tapered Cup and Cone Set - 1779 Cone + 1729 Cup
2.24" OD X 15/16" ID X 0.7625" Width
2.24" OD X 15/16" ID X 0.7625" Width
Technical Specs
Product Type Tapered Roll Bearings - Inch Inner Ring 1779 Outer Ring 1729 Bore (d) 15/16 inches 23.812 mm Outer Diameter (D) 2.2400 inches 56.896 mm Assembled Width (T) 0.7625 inches 19.368 mm Cone Width (B) 0.7810 inches 19.837 mm Cup Width (C) 0.6250 inches 15.875 mm Shaft Radius (R) 0.03 inches 0.8 mm Housing Radius (r) 0.05 inches 1.3 mm Load Ratings (Dynamic) 178 lbs Load Ratings (Static) 192 lbs Limiting Speed 9200 rpm Weight 0.540 lbs
